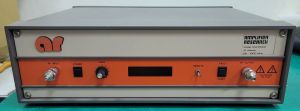

AR 10W1000C Amplifier Research 射頻功率放大器 0.5-1000MHz

Description The Amplifier Research 10W1000C 500 kHz – 1000 MHz, 10 WATTS CW Amplifier is a portable, self-contained, air-cooled, broadband, solid state amplifier designed for applications where instantaneous bandwidth and high gain are required. Push-pull circuitry is utilized in the high power stages to lower distortion and improve stability. The A.R. 10W1000C, when used with an RF sweep generator, will provide a minimum of 10 watts of swept power. Included is a front panel gain control which permits the operator to conveniently set the desired output level. The Amplifier Research 10W1000C 500 kHz – 1000 MHz, 10 WATTS CW Amplifier is protected from RF input overdrive by limiting diodes and an RF input leveling circuit which controls the RF input level to the RF amplifier first stage when the RF input level is increased above 0 dBm. The RF Amplifier stages are protected from over temperature by removing the DC voltage to them if an over temperature condition occurs due to cooling blockage or fan failure. There is a digital display on the front panel to indicate the operate status and fault conditions when an over temperature, power supply, or amplifier fault has occurred. The unit can be returned to operate when the condition has been cleared. The A.R. 10W1000C includes digital control for both local and remote control of the amplifier. This 8-bit RISC microprocessor controlled board provides both IEEE-488 (GPIB) and asynchronous, full duplex RS-232 control of all amplifier functions. Contact TestWorld today for the best price on the Amplifier Research 10W1000C 500 kHz – 1000 MHz, 10 WATTS CW Amplifier. Explore Financial options to find a cost management solution best for your company: Test Equipment RentalsLease and Finance Test EquipmentRent-to-Own Test EquipmentAmplifier Research 10W1000C Specificaitions: POWER OUTPUT: 10 watts minimumINPUT FOR RATED OUTPUT: 1.0 milliwatt maximumPower output @ 3dB compressionNominal: 20 wattsMinimum: 10 wattsPower output @ 1 dB compressionNominal: 17 wattsMinimum: 10 wattsFLATNESS: ± 1.0 dB typical (± 1.0 dB maximum)FREQUENCY RESPONSE: 500 kHz – 1000 MHz instantaneouslyGAIN (at maximum setting): 40 dB minimumGAIN ADJUSTMENT (continuous range): 20 dB minimumINPUT IMPEDANCE: 50 ohms, VSWR 2.0:1 maximumOUTPUT IMPEDANCE: 50 ohms nominalMISMATCH TOLERANCE: 100% of rated power without foldback. Will operate without damage or oscillation with any magnitude and phase of source and load impedance.MODULATION CAPABILITY: Will faithfully reproduce AM, FM, or pulse modulation appearing on the input signalHARMONIC DISTORTION: Minus 20 dBc maximum at 15 wattsTHIRD ORDER INTERCEPT POINT: 50 dBm typicalPRIMARY POWER: 90-132/180-264 VAC 50/60 Hz, single phase 300 watts maximumRF CONNECTORS: Type N femaleCOOLING: Forced air (self-contained fans)
